产品介绍:

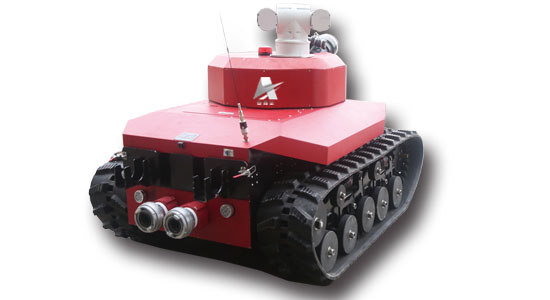

消防灭火机器人
安奇正消防灭火机器人已通过CE和ROHS的认证,3578型消费炮具有独一无二的设计,其4英寸的高流量低消耗的内管设计,与80psi(5.5巴)炮头配用时,水泵仍然可喷射高达2000pgm(7600lpm)的水流。上下俯仰角可达135度,可让举高消/ 云梯消防车不用太靠近火灾而进行高层建筑/油田储油区等的灭火及降温,以此大大降低火势对人员及器材的直接伤害。可根据客户要求定制。
1. 采用履带式行走,越野性能好 2. 具有很好的通过性3. 能在泥泞、崎岖不平的路行驶
高度 | 说明 |
速度:10KM/H max | 双向无级PWM 变速 |
动力 | 直流有刷电机2X3KW |
材质:全钢焊接车体(碳钢受力骨架,冷轧钢板蒙皮) | 带履带挡泥板 |
长X宽X高 | 1800X1200X1200mm(h) |
电源 | 锂电池,可续航 2-3小时 |
悬挂:接地负重轮全独立减震 | 动力轮及支撑轮紧张轮全采用黑色高分子耐磨材料 |
履带:加厚型攀爬橡胶履带,内嵌凯夫拉纤维 | 230mm 宽度 |
爬楼梯: 国标尺寸楼梯(30度) | 需车内配重合适 |
爬坡度数 | 35度 |
整备质量 | 600KG |
垂直越障高度 | 20cm |
控制方式:2.4GHZ 遥控系统 | 地面无障碍物阻挡理论遥控距离:300 米。 |
-上下俯仰角为135°(+90°至-45°) ;360°水平旋转;-流量120L/S |
English Information
AQZ Fire fighting robots are certified by CE and Rohs. Monitor model 3578 is unique on design, when its 4 inches high flow and low consumption inner tubematches is matched with the 80psi (5.5 BAR) .monitor, the flow rate wil reach 2000pgm(7600lpm),and the upper and lower elevation angle will reach 135 degree.
When there is high-rise fire or oilfield fire, you do not have to use the ladder lift truck to put out fire closely, it can be replaced by AQZ fire fighting robot to do it or make it cooling down, so that we can minimize the danger to the fire fighters and vehicle. Customised is avalable.
1. Crawler type walking, high cross-country performance 2. Good passability
3. Cross deep mud and marshly terrain 4. Travels over deep snow and ice
Fire-Fighting Robot
Parameters | Instruction |
Speed:10KM/H max | Two-way infinite variable speed PWM |
Power | DC brush motor X2 3000W |
Material:All-steel welding vehicle body (carbon steel force frame, cold rolled skin) | With caterpillar fender |
L*W*H | 1800*1200*1200mm(h) |
Power supply: | lithium cell, Endurance 2-3 hours |
Suspension: earth loading wheel full independence shock absorption | PU rubber load wheel |
Suspension:earth loading wheel full independence shock absorption | Power wheel, supporting wheel and tension wheel were adopted by black polymer wear resistant material |
Track:Thickening climbing rubber track,built-in Kevlar fiber | 230mm width |
Stairs Climbing: International standard size (30°) | Balance weight in vehicle |
Climbing degree | 35° |
Curb weight | 600KG |
Vertical obstacle height | 20cm |
Control way:2.4GHZ remote control system | Barrier-free on the ground, theoretical remote distance:300m. |
Upper and lower elevation angle is 135°,+90°-- -45°), Horizontal turning 360°;flow rate 120L/S |
